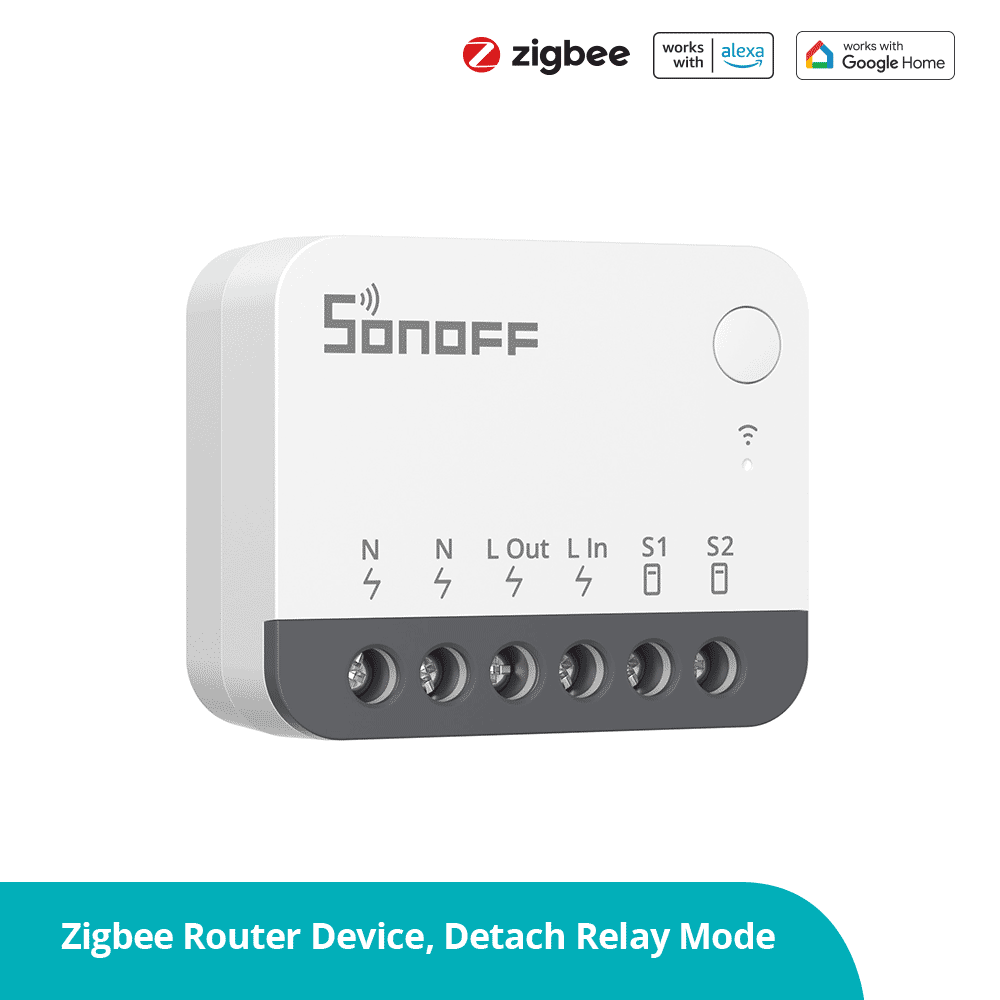

SONOFF ZBMINIR2 WiFi Switch Smart Timer Module 10A 2 Way Switch Support APP/LAN/Voice Remote Control DIY For Smart Home Automation
24 in stock
【Compact Size】The tiny size can easily fit in EU-type/86 type/120 type mounting box.
【External Switch Control】ZBMINIR2 can easily connect to the momentary switch, door switch, SPDT switch, and rocker switch.
【Expansive Zigbee Signal Coverage】ZBMINIR2 works as a Zigbee router device, supports extending up to 64 Zigbee end devices, boosts signal strength, and expands coverage for optimal performance.
【Detach Relay Mode】 ZBMINIR2 is equipped with the ‘Detach Relay Mode’, enabling closing the external switch while keeping the smart lights online.
【Compatible with Multiple Zigbee Hub】 ZBMINIR2 integrates with Zigbee hubs, such as SONOFF NSPanel Pro, SONOFF iHost, SONOFF ZB Bridge/ZB Bridge-P/ZB Bridge-U, Philips Hue, SmartThings hub v3…
Note: The Zigbee Hub is needed.
₹1,764.00 ₹4,500.00
24 in stock
24 in stock
Out of stock
83 in stock (can be backordered)
9 in stock (can be backordered)
1348 in stock (can be backordered)
| Quantity | Fixed price |
| 1 | ₹1,764.00 |
| 2 - 5 | ₹1,450.00 |
| 6 - 10 | ₹1,258.00 |
| 11 - 25 | ₹998.00 |
| 26 - 50 | ₹710.00 |
| 51 - 100 | ₹706.00 |
| 101 - 200 | ₹680.00 |
| 201 - 500 | ₹650.00 |
Overview
SONOFF ZBMINIR2 is an extremely compact Zigbee 3.0 smart switch, capable of being installed in EU-type/86 type/120 type mounting box and supporting a maximum load of 10A, compatible with various external switch types, upgrading your traditional external switch into a smart one, seamlessly integrating smart technology into your home for enhanced convenience and control.
SONOFF ZBMINIR2 needs to be used with a Zigbee hub, such as SONOFF NSPanel Pro, SONOFF iHost, SONOFF ZB Bridge/ZB Bridge-P/ZB Bridge-U, Philips Hue, SmartThings hub v3, Echo Plus 2nd…
A reliable connection is crucial for your Zigbee network.ZBMINIR2, as a Zigbee router device with Turbo Mode’, supports extending up to 64 Zigbee end devices, boosts signal strength, and expands coverage for optimal performance.
Annoyed by your smart bulb going offline when the external switch is off? Try ‘Detach Mode’! Keep your smart bulb connected and worry-free, even with the external switch off. Worried about damage from sudden power restoration after an outage? Delay power-on is your solution, preventing harm from high currents when multiple loads turn on simultaneously.
Based on the Zigbee 3.0 standard protocol, ZBMINIR2 seamlessly integrates with third-party open-source platforms, such as Home Assistant, Zigbee2MQT( Zigbee Dongle is required, e.g. SONOFF ZBDongle-P/ ZBDongle-E) making it perfect for your home automation needs.
Documents
Video
Language: Spanish
Language: English
Language: Polish
| Model | ZBMINIR2 |
|---|---|
| Rating | 100-240V~50/60Hz 10A Max Resistive Load u |
| Max.Load | 2400W@240W |
| Wireless Connection | Zigbee 3.0 |
| Color | White |
| Casing Material | PC V0 |
| Net weight | 26.7g |
| Dimension | 39.5x33x16.8mm |
Based on 0 reviews
Be the first to review “SONOFF ZBMINIR2 WiFi Switch Smart Timer Module 10A 2 Way Switch Support APP/LAN/Voice Remote Control DIY For Smart Home Automation”
You must be logged in to post a review.
Related products
-
Ewelink Devices, Zigbee Devices
SONOFF SNZB-04P Zigbe Door Window Sensor Tamper Alert Smart Scene Remote Control Smart Home ZHA Work with Alexa Google Home
Ewelink Devices, Zigbee DevicesSONOFF SNZB-04P Zigbe Door Window Sensor Tamper Alert Smart Scene Remote Control Smart Home ZHA Work with Alexa Google Home
【Monitoring Doors & Windows】Automatically turning on lights when a door is opened, triggering audible and visual alarms in case of unauthorized entry, and sending app notifications to keep you informed.
【Tamper Alert】Equipped with tamper-proof features ensures your peace of mind. You will receive App notifications on your phone if the sensor is tampered with.
【5-Year Battery Life】Powered by CR2477 battery extends the battery life to over 5 years, eliminating concerns about frequent battery replacements.
【Zigbee 3.0 Compatible】 Seamlessly integrates with Zigbee hubs utilizing the Zigbee 3.0 protocol, such as SONOFF NSPanel Pro, SONOFF iHost, SONOFF ZB Bridge Pro, SONOFF ZBDongle-E, and Echo Plus 2nd…
【Local Smart Scene】With Local smart scene, scene linkage between Zigbee devices can be executed normally as long as your Zigbee devices are powered on even if the network is disconnected.Note: SNZB-04P needs to be used with Zigbee Hub.
SKU: 6920075740646 -
DIY Mode Switches, Zigbee Devices
SONOFF ZB Dongle-P Zigbee 3.0 USB Dongle Plus Wireless Zigbee Gateway Analyzer Zigbee2MQTT USB Interface Capture with Antenna
DIY Mode Switches, Zigbee DevicesSONOFF ZB Dongle-P Zigbee 3.0 USB Dongle Plus Wireless Zigbee Gateway Analyzer Zigbee2MQTT USB Interface Capture with Antenna
-
- Pre-flashed with Z-Stack 3.x.0 coordinator firmware
- Can use ZHA in Home Assistant or use Zigbee2MQTT
- Base on TI CC2652P + CP2102N
- +20dBm output gain
- SMA interface external antenna
- Aluminum housing effectively reduces signal interference from peripherals
- Optional 1.5m USB extension cable for better signal range
SKU: 9888010100046 -
-
Ewelink Devices, Zigbee Devices

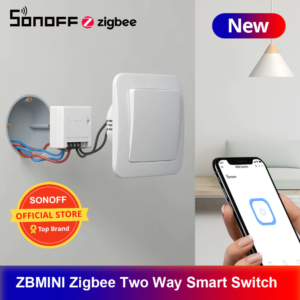

SONOFF ZBMINI Zigbee Two Way Smart Switch Turn traditional switch to Smart WiFi Switch With Timer Internet Work With AMAZON Alexa,google Home ,Nest
