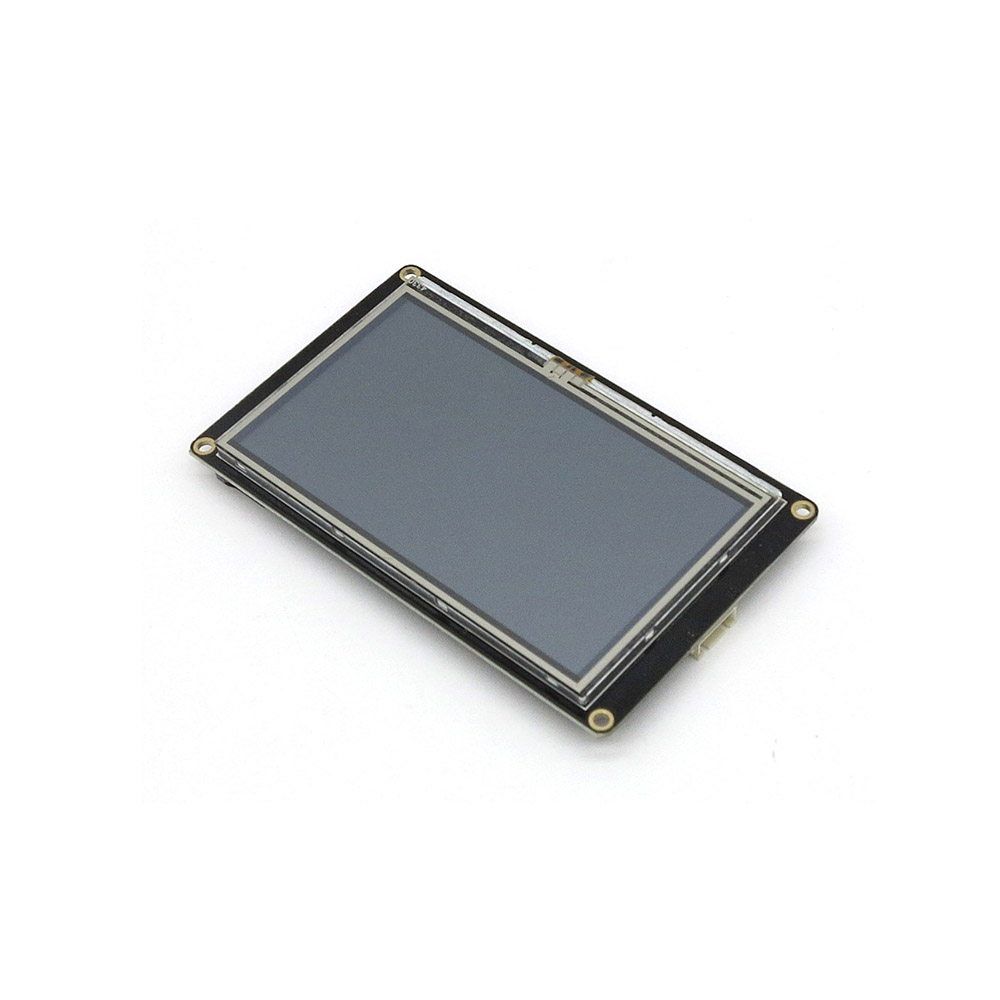

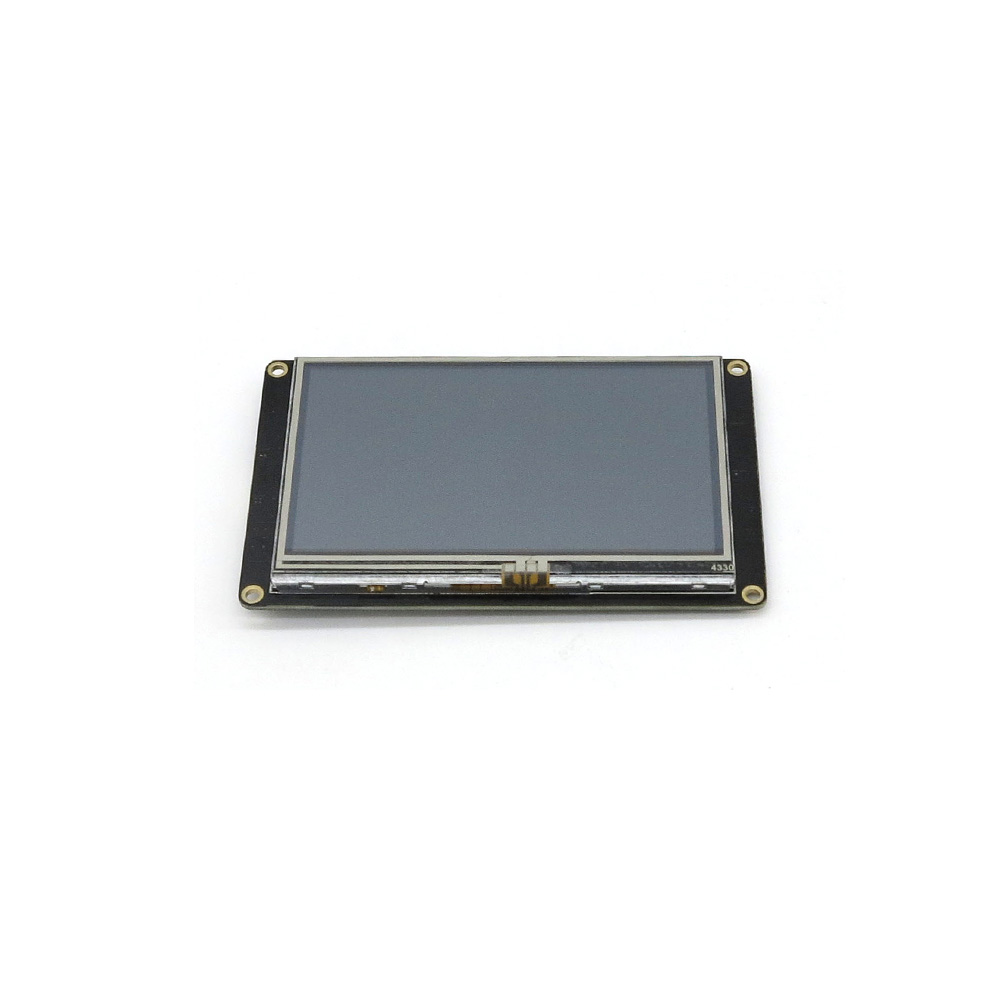

NX4827K043 – Nextion 4.3” Enhanced Series HMI Touch Display

NEXTION
Availability:

Available on backorder
Add to wishlist
Compare

The Nextion Enhanced versions are more powerful than the standard ones. Compare to the basic Nextion displays, the enhanced ones have added some new functions, such as: supporting built-in RTC, supporting save data to Flash, supporting GPIO, larger flash capacity and larger CPU clock.

  • Supports built-in RTC
  • Supports GPIO
  • SD Card interface: support max max 32G Micro TF/SD card (FAT32 file format)
  • Flash data storage space: 32MB
  • EEPROM: 1024 bytes
  • RAM: 8192 bytes
  • Instruction buffer: 1024 bytes
  • Color: 65K (65536) colors
  • Resolution: 480×272 pixel
  • Adjustable Brightness: 0~230 nit- the interval of adjustment is 1%
  • MPN: IM160511006

₹3,752.02 ₹11,000.00

Available on backorder

Bulk Price
Quantity Fixed price
0 - 1 -
2 - 5 ₹3,552.02
6 - 10 ₹3,452.02
11 - 20 ₹3,399.02
21 - 100 ₹3,169.74
101 - 500 ₹2,637.18
501 - 2500 ₹2,637.18

Overview

The Nextion Enhanced versions are more powerful than the standard ones. Compare to the basic Nextion displays, the enhanced ones have added some new functions, such as: supporting built-in RTC, supporting save data to Flash, supporting GPIO, larger flash capacity and larger CPU clock. The enhanced Nextion series has 7 size covers from generic 2.4” to 7.0”.

Nextion Enhanced NX4827K043 is a powerful 4.3” HMI TFT display, with 32MB Flash data storage space, 1024 byte EEPROM, 8192 byte RAM. With GPIO supported, now customers can use Nextion to control external devices.

Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.

Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake. It’s easy to adapt Nextion family HMI to existing projects- users just need to provide it a UART.



Note: there’s a small power supply test board and a wire for you to test if the electricity supply is enough or not. Please see below image on how to use it.

Features

  • Supports built-in RTC
  • Supports GPIO
  • SD Card interface: support max max 32G Micro TF/SD card (FAT32 file format)
  • Flash data storage space: 32MB
  • EEPROM: 1024 bytes
  • RAM: 8192 bytes
  • Instruction buffer: 1024 bytes
  • Color: 65K (65536) colors
  • Resolution: 480×272 pixel
  • Adjustable Brightness: 0~230 nit- the interval of adjustment is 1%

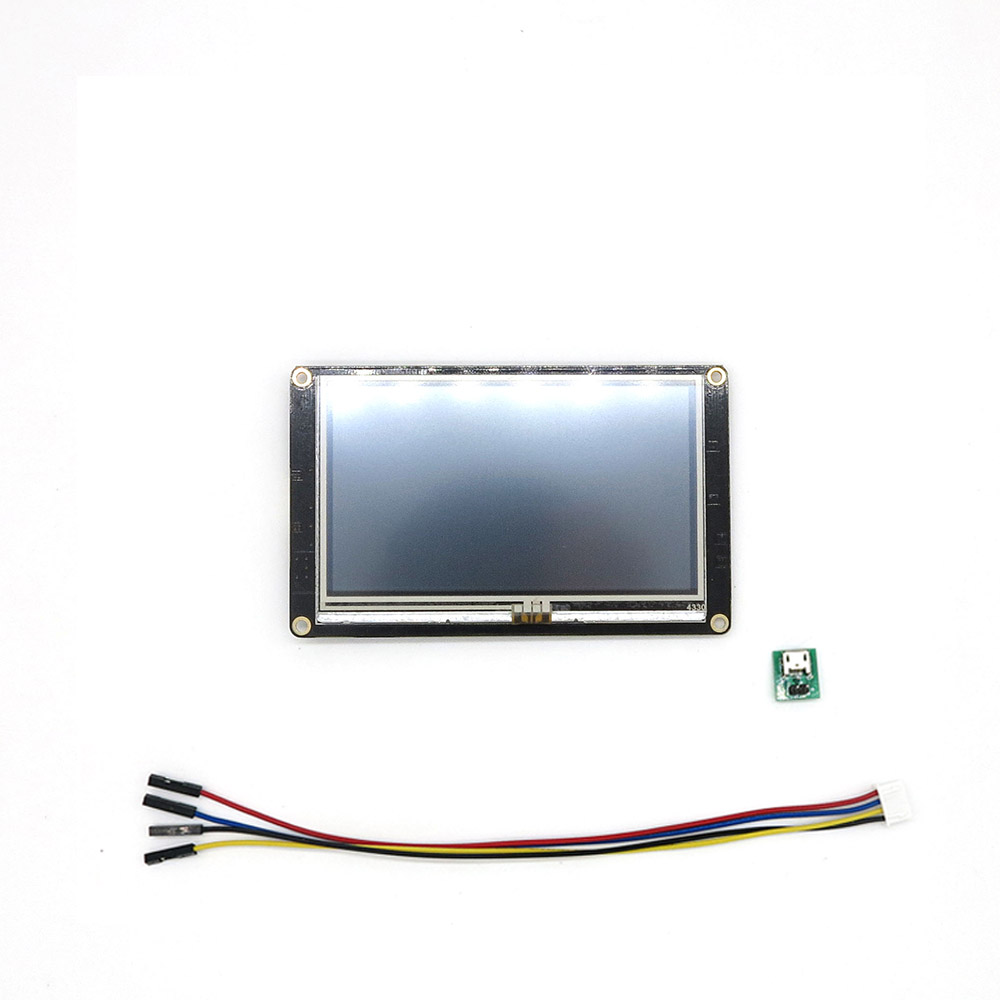

  • Package includes

    1× 4.3″ Nextion Enhanced HMI Display

    1× power supply test board

    1× 4-pin grove cable

  • ADDITIONAL INFORMATION

    Discontinued: No
    Link Wiki: No
    Display Resolution 480 * 272
    Display Interface Serial
    Screen Type Touch Screen
    Display Controller No
    TFT display interface N/A
    Display Size 5.0”
    Board Size 120mm*74mm
    Expand SD Card Socket
    Touch Screen
    Weight 143 g
SKU: IM160511006 Categories: ,
Weight 0.143 kg
brands

NEXTION

Specification

  • Visual Area: 95.04mm(L)×53.86mm(W)
    Layout size:  120(L)×74(W)×6.2(H)
    Touch type: Resistive
    Backlight: LED
    Backlight lifetime (Average): >30,000 Hours
    Net Weight: 93.8 g
    Recommended power supply: 5V 500mA DC
    Certificates: CE/EMC, RoHS(certificates)
