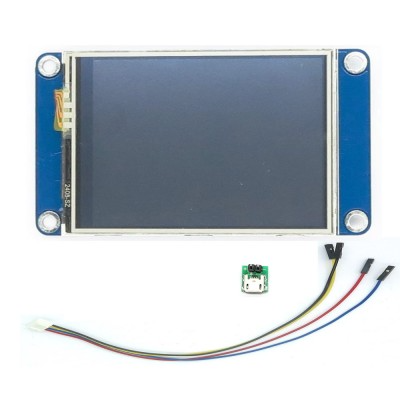

NX3224T024 – Nextion 2.4” Basic Series HMI Touch Display

NEXTION
Availability:

Available on backorder


Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field.

  • 320 x 240 Resolution
  • Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2
  • RGB 65K true to life colours
  • TFT Screen with integrated 4-wire Resistive Touch Panel
  • Easy 4 pin interface to any TTL Serial Host
  • 4M Flash memory for User Application Code and Data
  • On board micro-SD card for firmware upgrade
  • Visual Area:36.72mm(L)×48.96mm(W)
  • Adjustable Brightness:0~180 nit, the interval of adjustment is 1%
  • 5V90mA power consumption
  • Generic using for all Arduino or Raspberry Pi project

5,999.00

Available on backorder

This item: NX3224T024 – Nextion 2.4” Basic Series HMI Touch Display

Available on backorder

5,999.00
5,999.00
6,000.00
1,806.00 5,000.00
Compare

Nextion HMI 2.4″ TFT 320×240 resistive Lcd touch screen Display Module for Arduino NX3224T024 4M Flash, 2KByte RAM, 65k colors

Nextion Editor Overview

Nextion Editor Overview

Nextion Editor is a free human-machine interface (HMI) GUI development software for Nextion Basic Series, Discovery Series, Enhanced Series, and Intelligent Series. The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCll text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. The Nextion product is the best balance HMI solution between cost and benefit with a low and decreased learning curve.

Nextion Editor Features

Versatile Character Encoding
With several character encoding, you are able to create the HMI project in your language characters and strings.

Fonts and Text Styling
The font creator allows you to generate the specific fonts applied in each component value or text attribute. e.g.Generate the font of “Arial” with Height “24” and Encoding “UTF-8”

25+Amazing WYSIWYG Components
Easy-to-use components to customized GUI at screen side allow you to develop projects rapidly in a cost-effective way

Component Attribute Setting
The component attribute setting gives you
the options to design all the aspects of the component that you need.

Free Simulator Debug
Debug the HMI project at any time even without the Nextion Display.The instruction input area allows you to send any Nextion commands to check the feedback and interactions.

Nextion Operational Commands
The operational commands allow users to program the HMI interactions by coding in Events windows

Text-based Instruction Set
Simple ASCll text based instructions will dramatically reduce your HMI project development workloads

Support Simple Assignment Operators
To handle the calculation and assignment for the text and Numeric data, the simple assignment operators help.

Documents

Please visit our wiki page for more information about this product. Any suggestions for improvement, such as correcting errors, adding more demo codes or tutorials, will be highly appreciated.

SKU: IM150416002 Categories: ,
Weight 0.062 kg
brands

NEXTION

Discontinued: No
Link Wiki: No
Display Resolution 320 * 240
Display Interface Serial
Screen Type Touch Screen
Display Controller No
TFT display interface N/A
Display Size 2.8”
Board Size 74.4*42.9mm
Expand SD Card Socket
Touch Screen
Weight 62 g



Warranty Condition Nextion
