NX3224F024 – Nextion 2.4″ Discovery Series HMI Touch Display

NEXTION
Availability:

3 in stock (can be backordered)
Add to wishlist
Compare

NX3224F024 is a Nextion Discovery series 2.4” Resistive HMI touchscreen without enclosure and SKU is 6920075776799.
• 2.4″ LCD-TFT HMI Display

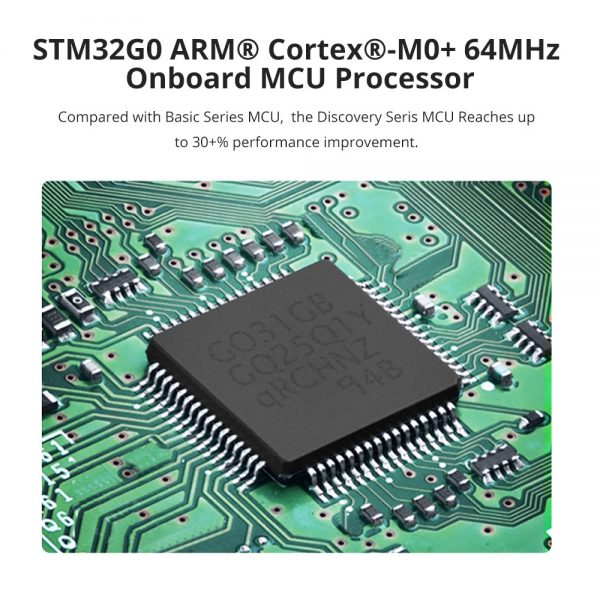

• STM32GO ARM® Cortex®-M0+ 64MHz Onboard MCU Processor
• Fonts Creator with Versatile Character Encodings
• Low Learning Curve Text-based Instruction Set
• Support 15+ Amazing WYSIWYG Components
• New Nextion Cost-effective HMI Solution

₹1,999.00 ₹5,000.00

3 in stock (can be backordered)

Bulk Price
Quantity Discount Discounted price
0 - 1 ₹1,458.00 -
2 - 4 ₹1,310.00 ₹1,999.00
5 - 10 ₹1,183.38 ₹1,999.00
20 - 29 ₹1,154.17 ₹1,999.00
30 - 50 ₹1,071.61 ₹1,999.00
100 - 1000 ₹885.74 ₹1,999.00
₹6,059.57 for 3 item(s)

Nextion Editor Overview

Nextion Editor is a free human-machine interface (HMI) GUI development software for Nextion Basic Series, Enhanced Series, and Intelligent Series. The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCII text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. The Nextion product is the best balance HMI solution between cost and benefit with a low and decreased learning curve.

Nextion Editor Features

Versatile Character Encoding
With several character encoding, you are able to create the HMI project in your language characters and strings.

Fonts and Text Styling
The font creator allows you to generate the specific fonts applied in each component value or text attribute. e.g.Generate the font of “Arial” with Height “24” and Encoding “UTF-8”

25+Amazing WYSIWYG Components
Easy-to-use components to customized GUI at screen side allow you to develop projects rapidly in a cost-effective way

Component Attribute Setting
The component attribute setting gives you the options to design all the aspects of the component that you need.

Free Simulator Debug
Debug the HMI project at any time even without the Nextion Display.The instruction input area allows you to send any Nextion commands to check the feedback and interactions.

Nextion Operational Commands
The operational commands allow users to program the HMI interactions by coding in Events windows

Text-based Instruction Set
Simple ASCll text based instructions will dramatically reduce your HMI project development workloads

Support Simple Assignment Operators
To handle the calculation and assignment for the text and Numeric data, the simple assignment operators help.

NX3224F024 VS NX3224T024

Compared with Basic Series, the Discovery Series has a better MCU performance, with the new image compression technique, the Discovery Series allows more pictures in the same amount of flash compared to Basic and Enhanced models. The operating current of deep sleep mode is as low as 0.25mA which makes the Discovery Series displays more suitable for battery-powered projects.

NX3224F024 Certification and Documents

Nextion Technical Support

SKU: 6920075776799 Categories: ,
Weight 0.085 kg
brands

NEXTION

Additional information

Brand
Model NX3224F024
Display Size 2.4″
Resolution 320*240
Touch Panel RTP
MCU 64 MHz
Flash 4 MB
SRAM 3584 Byte
Input Power DC 5V 500mA
USART Port XH2.54 4P
Storage Temperature -30 ~ 85 °C
Working Temperature -20 ~ 70 °C
Nextion Editor Components Text, Scrolling Text, Number, Xfloat, Button, Progress Bar, Picture, Crop, Hotspot, TouchCap, Gauge, Waveform, Slider, Timer, Variable, Dual-state Button, Checkbox, Radio, QRcode
Character Encoding ascii, utf-8, iso-8859-1~15, gb2312, ks_c_5601-1987, big5, windows-874/1255/1256/1257/1258, koi8-r, shift-jis
Anti-aliasing font Yes
Product Dimensions https://cdn.nextion.tech/wp-content/uploads/2021/07/NX3224F024_011R.pdf
